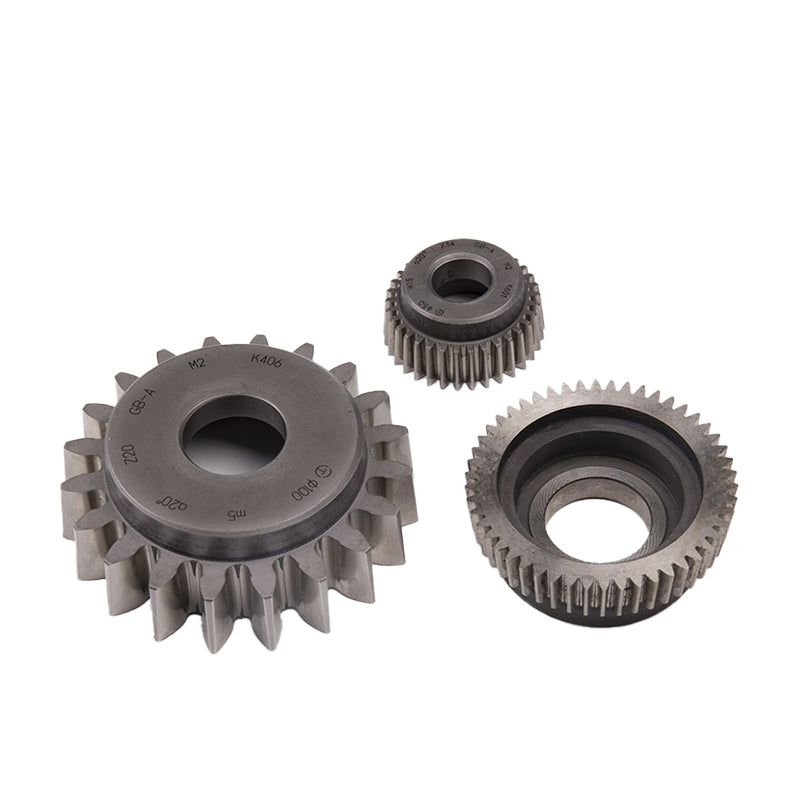

gear shaper Disc-Type Spur Gear Shaper Cutter, Outer Diameter Φ240, Precision GradProduct parameters Product name: Disc straight gear shaping cutter Product material: High speed steel M2 Packaging: Paper box Product specifications: See the table below Unit: One piece Disc straight gear shaping cutter GB T60812001 1. Application: Disc shaped spur gear shaping cutters are used to process spur gear shaping cutters for involute cylindrical gears with basic tooth profiles in accordance with GB T1356 and precision in accordance with GB
Product parameters
Product name: Disc straight gear shaping cutter
Product material: High-speed steel M2
Packaging: Paper box
Product specifications: See the table below
Unit: One piece
Disc straight gear shaping cutter GB/T6081—2001
with basic tooth profiles in accordance with GB/T1356 and precision in accordance with GB/T10095.1 and GB/T10095.2.
2. Features and precision: The structure of the gear cutter is produced in accordance with GB/T6081-2001, and the technical conditions are in accordance with GB/T6082-2001.
The nominal diameter of the circle is divided into five series: Φ75mm, Φ100mm. Φ125mm, Φ160mm, Φ200mm, and the accuracy level is divided into three types: AA, A, and B.
3. Tool marking and examples
Please specify when ordering: name, product number, nominal circular diameter, module, pressure angle, precision grade, and standard number.
Example: Disc-shaped spur gear shaping cutter 25300-275 Φ100 m4. a20°. A GB/T6081-2001
Nominal Pitch Circle Diameter Φ75mm Module m1~m4 α20°
mm
| Product number | Module m |
Number of teeth |
Circle diameter d |
Aperture D |
Thickness B |
|---|---|---|---|---|---|
| 25360–250 | 1.00 | 76 | 76 | 31.743 | 15 |
| 251 | 1.25 | 60 | 75 | ||
| 252 | 1.50 | 50 | |||
| 253 | 1.75 | 43 | 75.25 | 17 | |
| 254 | 2.00 | 38 | 76 | ||
| 255 | 2.25 | 34 | 76.50 | ||
| 256 | 2.50 | 30 | 75 | ||
| 257 | 2.75 | 28 | 77 | ||
| 258 | 3.00 | 25 | 75 | 32 | |
| 269 | 3.25 | 24 | 78 | ||
| 25360–260 | 3.50 | 22 | 77 | ||
| 261 | 3.75 | 20 | 75 | ||
| 262 | 4.00 | 19 | 76 |
Nominal Pitch Circle Diameter Φ100mm Module m1~m6 α20°
mm
| Product number | Module m |
Number of teeth |
Circle diameter d |
Aperture D |
Thickness B |
|---|---|---|---|---|---|
| 25360–263 | 1.00 | 100 | 100 | 31.743 | 18 |
| 264 | 1.25 | 80 | |||
| 265 | 1.50 | 68 | 102 | ||
| 266 | 1.75 | 58 | 101.50 | 22 | |
| 267 | 2.00 | 50 | 100 | ||
| 268 | 2.25 | 45 | 101.25 | ||
| 269 | 2.50 | 40 | 100 | ||
| 270 | 2.75 | 36 | 99 | ||
| 271 | 3.00 | 34 | 102 | ||
| 272 | 3.25 | 31 | 100.75 | ||
| 278 | 5.50 | 19 | 104.50 | ||
| 279 | 6.00 | 18 | 108 |
Nominal Pitch Circle Diameter Φ125mm Module m4~m8 α20°
mm
| Product number | Module m |
Number of teeth |
Circle diameter d |
Aperture D |
Thickness B |
|---|---|---|---|---|---|
| 25360–280 | 4.0 | 31 | 124.0 | 31.743 | 30 |
| 281 | 4.5 | 28 | 126.0 | ||
| 282 | 5.0 | 25 | 125.0 | ||
| 283 | 5.5 | 23 | 126.5 | ||
| 284 | 6.0 | 21 | 126.0 | ||
| 25360–285 | 6.5 | 19 | 123.5 | ||
| 286 | 7.0 | 18 | 126.0 | ||
| 287 | 8.0 | 16 | 128.0 |
Nominal Pitch Circle Diameter Φ160mm Module m6~m10 α20°
mm
| Product number | Module m |
Number of teeth |
Circle diameter d |
Aperture D |
Thickness B |
|---|---|---|---|---|---|
| 25300-288 | 6 | 27 | 162 | 88.9 | 35 |
| 289 | 6.5 | 25 | 162.5 | ||
| 290 | 7 | 23 | 161 | ||
| 291 | 8 | 20 | 160 | ||
| 292 | 9 | 18 | 162 | ||
| 293 | 10 | 16 | 160 |
Nominal Pitch Circle Diameter Φ200mm Module m8~m12 α20°
mm
| Product number | Module m |
Number of teeth |
Circle diameter d |
Aperture D |
Thickness B |
|---|---|---|---|---|---|
| 25300-294 | 8 | 25 | 200 | 101.6 | 40 |
| 295 | 9 | 22 | 198 | ||
| 296 | 10 | 20 | 200 | ||
| 297 | 11 | 18 | 198 | ||
| 298 | 12 | 17 | 204 |
